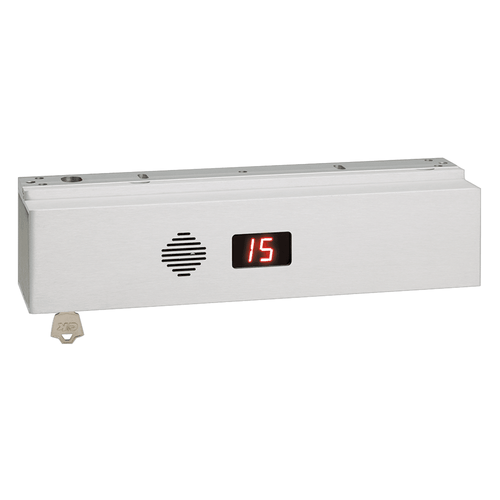

1650LB Single Maglock Delayed Egress, 15 Sec, Key Switch Reset, Aluminum

1511SNDKV
ExitCheck Integrated Delayed Egress Maglock, Single, 1650 lbs., Fixed 15 Second Delayed Release, Built-In Key Control, Dull Aluminum Finish

SDC's ExitCheck® delayed egress locks continue to be the premier delayed egress offering on the market. The patented design revolutionized delayed egress by incorporating an alternating verbal message, verbal countdown and alarm tone, plus a large digital countdown display and door release indicator to provide a clear warning for the safety of persons without prior knowledge of door operation, including the blind and hearing impaired. Designed to delay egress through perimeter exit doors for 15 or 30 seconds, alert security and personnel to unauthorized egress, and are compatible with access controls and patient wandering systems.

A choice of operation mode allows users to meet their local code compliance while meeting all national and regional building and fire life safety codes, including NFPA 101, Special Locking Arrangements. All SDC delayed egress locks release immediately in an emergency.

A variety of field selectable options allow for field selectable voice message and alarm tone, or alarm tone only; field selectable activation on door movement; exit device with switch kit; or pressure sense bars for non-latching doors; field selectable automatic or manual relock upon power up after emergency release or power loss; and a field selectable door prop alarm sounds when door is left open after the selected bypass time has elapsed.

The 1511S series incorporates all ExitCheck® features for single door applications with an integrated three position key switch for reset; manual power-up annd bypass settings for convenience.

Features

• Integrated delayed egress magnetic lock
• Interlocking quick mount assembly
• Visual countdown display indicator
• Alternating verbal message
• Verbal countdown and alarm tone
• Built-in activation trigger
• Adjustable door movement sensor
• Integrated three position keyswitch
• Wandering patient, patient and infant tracking system compatible
• Code compliant operation modes
• Auto-sensing dual voltage
• Voltage and current spike protection
• Field selectable security or safety message
• Field selectable activation trigger
• Field selectable automatic or manual reset
• Field selectable sustained or timed bypass
• Single or multi-door zone control and reset
• Remote reset
• Fire/emergency release
• Anti-tailgate
