Description

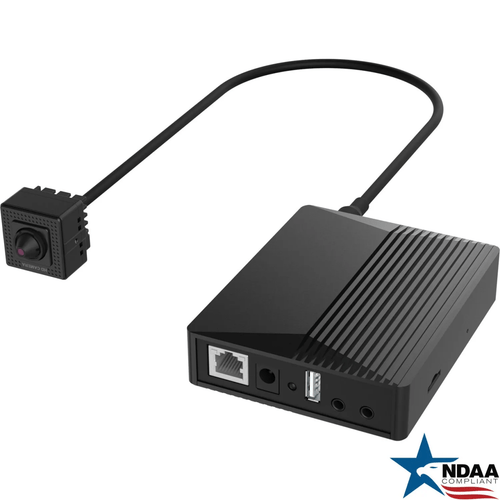

Vitek VT-EPH-HDA5 H.265+ / H.265 / H.264+ / H.264 / MJPEG encoding Pinhole 2.8mm Fixed Iris Lens Camera GEN IV Advanced Analytics, MicroSD Support (up to 256GB), 12VDC/PoE
Features
- Pinhole 2.8mm Fixed Iris Lens Camera
- 1/2.8" 2.0 MegaPixel Progressive Scan CMOS Image Sensor
- Up to 30fps @ 2MP (1920 x 1080)
- Included IP Video Encoder Server supports up to 5.0 MegaPixel Cameras!
- H.265+ / H.265 / H.264+ / H.264 / MJPEG encoding
- GEN IV Advanced Analytics: Intrusion Detection, Line Crossing, Target
Counting [All by Human / Motor Vehicle Classification], Face A.I.,
Scene Change, Video Blur, Abnormal Color Detection, Heat Map - Face A.I. (Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
- Audio: 1 Channel Input, 1 Channel Output*
- Alarm Interface (8-ch In/4-ch Out)
- MicroSD Card Slot (256GB)
- 12VDC + PoE Operation
- 3-Year Warranty
Specifications
- Image Sensor 1/2.8" Progressive Scan CMOS
- Image Size 1920 x 1080
- Electronic Shutter Auto / Manual
- Lens Fixed 2.8mm@F2.2, Horizontal FoV: Approx. 104°, Vertical FoV: Approx. 59°, Diagonal FoV: Approx.117°
- Min. Illumination 0.05lux @ F2.2, AGC ON
- WDR 120Db (Camera)
- Other Features BLC, HLC, Defog
- DNR 2D/3D-DNR
- DORI Detect: 125ft (38m), Observe: 49ft (15m), Recognize: 26ft (8m), Identify 13ft (4m)
- Video CompressionH.265+ / H.265 / H.264+ / H.264 / MJPEG
- H.264 Compression Std. Baseline Profile / Main Profile / High Profile
- Bit Rate (Type) 64Kbps ~ 6Mbps (VBR/CBR)
- Resolution 1080P(1920x1080), 720P(1280x720), D1, CIF, 480x240
- Main-Stream 60Hz: 1080P/720P/D1 (1~30fps), 50Hz: 1080P/720P/D1 (1~25fps)
- Sub-Stream 60Hz: 720P/D1/CIF (1~30fps), 50Hz: 720P/D1/CIF (1~25fps)
- Third Stream 60Hz: D1/CIF/480x240 (1~30fps), 50Hz: D1/CIF/480x240 (1~25fps)
- Image Setting Saturation, Hue, Brightness, Contrast, WDR, Sharpness, NR, Image Mirror / Flip, Adjustable Through Client or Web Browser
- Audio Compression G711A/U
- Network 100M RJ45
- Audio 1 CH 3.5mm Audio Input, 1CH 3.5mm Audio Output*
- Two-Way Audio YES
- Video 1CH BNC Video Input Connector
- Storage 1 MicroSD Card Slot, up to 256GB
- Alarm 8CH Alarm Input, 4CH Alarm Output
- Remote Monitoring Web browser / Vitek VMS / NVR / Mobile APP
- Online Connection Supports Simultaneous Monitoring of up to 8 Users, Supports Multi-stream Real Time Transmission
- Network Protocol UDP, IPv4/6, DHCP, NTP, RTSP/MP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, Qos
- Interface Protocol ONVIF
- Smart Alarm SD Card Full, SD Card Error, IP Address Conflict, Cable Disconnection, Sensor Alarm, Motion Alarm
- Intelligent Analytics Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face A.I., Scene Change, Video Blur, Abnormal Color Detection, Heat Map
- Face A.I. Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
- General Function Watermark, IP Address Filtering, Video Mask, Heartbeat, Illegal Login, Corridor Pattern
- PoE Yes, IEEE802.3af
- Power DC12V/PoE
- Power Consumption < 5.5W
- Environmental Protection RoHS 2.0, REACH, WEEE, Directive 94/62/EC
- Environmental Conditions Working: -22° ~140°F (-30°~60°C) / < 95% Humidity, Storage: -22° ~149°F (-30°~65°C) / < 95% Humidity
- Dims Camera DxWxH Server LxWxH Camera: 1.97"x1.24x1.97" (31.6x30.4x31.6mm)Server: 4.27"x3.46x1.10" (108.3x87.8x28mm)
- Weight Camera: 1.8oz (52.4g), Server: 9.57oz (271.4g), TOTAL COMBINED Weight: 11.37oz (322.3g)
