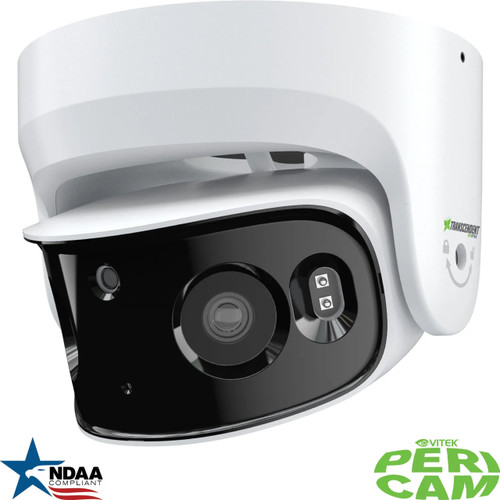

Vitek VTC-TNT2X4MSN Transcendent Series 8MP (2x4MP) Dual Sensor 180° Panoramic Full Color at Night Turret Camera with GEN IV Analytics
The VITEK VTC-TNT2X4MSN Dual Sensor PeriCam HD Network Camera with 180° panoramic view utilizes two separate 1/2.5” 5MP Progressive Scan CMOS Image Sensors (8MP (4K) Total, with one IP Address), and two separate 3.5mm fixed lenses to produce a seamless high-quality single image of a large surveillance area. With white light capable of covering a 65' radius, this camera is ideal for large public areas, including transit hubs, ports, conference centers, stadiums, campuses, parking facilities, and plazas. Available with a variety of mounts for all application scenarios.
Features
- 2 x 1/2.5" 5 MegaPixel Progressive Scan CMOS Sensors
- Up to 20fps live view @ 8MP - 4096x1800 (4K) (Stitching Mode)
- Resolution: 8MP (4K) / 6MP / 3MP / 1.3MP / 1080P
- Digital Zoom: 8x
- Lens: 2 Sets x ft=3.5mm, M12, Optical Distortion <15%
- Warm White Light / Up to 65'
- Triple Streaming: 265+ / H.265 / H.264+ / H.264 / MJPEG
- 1Ch Audio In + Out + Built-in Mic + Speaker: 10 Pre-Defined Custom Voice Tracks
- Triple Streaming - Main-Stream: 20fps: 4096x1800, 3840x1680, 2880x1264, 1920x080, 1280x720
Sub Stream: 20fps: 1080P, 1280x720, 704x480, 640x240
Third Stream: 30fps: 704x480, 640x240, 480x240 - Gen IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing (All by Human / Motor Vehicle Classification) Face A.I., Object Appear / Missing
- Face A.I. 4.0(Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
- Built-in MicroSD Card Slot (up to 256GB)
- Remote Viewing: VMS / Web Browser / Mobile (iOS/Android)
- IP67 Ingress Protection / Weather Resistance + IK10 Impact Rating
- Power Input: 12VDC / PoE+ (See Accessories tab for VT-POE60)
- Fast-Mounting Adapter Included in Package
- 3-Year Warranty
Specifications
- Image Sensor 2 x 1/2.5" Progressive Scan CMOS Sensor
- Max Resolution 4096 x 1800 (Stitching Mode)
- Mini. Illumination Color: 0.005Lux @ (f1.1, IRE 50), B/W: 0.0005 Lux@ (f1.1, IRE 50), 0 Lux with White LED
- Image Setting Saturation, Brightness, Contrast, Sharpness, Auto Gain Control, etc. Adjusted by Client
- Shutter Speed 60Hz: 1/30s-1/30,000s, 50Hz: 1/25s - 1/25,000s
- White Balance Auto / Manual / Indoor / Outdoor
- Gain / Iris Control Auto / Manual
- Day & Night Auto / Manual, time schedule
- SNR ≥52dB
- 3D DNR Auto / Manual
- AE Enhancement Backlight Control (BLC), Highlight Control (HLC), Digital Wide Dynamic Range (D-WDR)
- Digital Zoom 8x
- WDR Digital Wide Dynamic Range (D-WDR)
- Privacy Mask Eight (8) Areas - Up to Eight Masks in the Same Frame
- Picture Overlay Logo Picture Can be Overlaid on Video with 128px x 128px, 24bits JPG format
- OSD Overlay Max Fifteen (15) Characters / Line, Eight Lines, White or Red Colored Font
- Angle Adjustment Vertical -5~+5°, Rotation ±75°
- Focus Type 2 x f=3.5mm, M12 mount, Optical Distortion <15%
- Aperture Fixed, f1.11
- IR CUT Type Fixed, White Light Pass (Only)
- D.O.R.I. Detect: 295'(63.65m), Observe: 117' (25.26m), Recognize: 39' (12.73m), Identify: 29.5' (6.36m)
- Stitching FOV Horizontal FOV:180°±5%;Vertical FOV: 65°±5%
- Stitching Method Alpha-Blending
- IR Type / Range Warm White Light 65' (20m)
- Smart Brightness Yes - Facial Priority
- Mainstream A.I. On 60Hz: 20fps - 4096 x 1800 (4K), 3840 x 1680, 2880 x 1264, 1920 x 1080, 1280 x 720, 50Hz: 20fps - 4096 x 1800 (4K), 3840 x 1680,2880 x 1264,1920 x 1080,1280 x 720
- Sub stream A.I. On 60Hz: 20fps - 1920 x 1080, 1280 x 720, 704 x 480, 640 x 240, 50Hz: 25fps: 704 x 576, 640 x 240, 480 x 240
- 3rd Stream A.I. On 60Hz: 30fps - 704 x 480, 640 x 240, 480 x 240, 50Hz: 20fps - 1920 x 1080, 1280 x 720, 704 x 576, 640 x 240
- Video Compression Smart H.265+/H.265/H.264+/H.264/MJPEG
- H.264 Standard H.264 / AVC codec BP / MP / HP, Level 5.1
- H.265 Standard H.265 / HEVC codec MP, level 5.0
- Video Bit Rate 64 Kbps to 16Mbps
- Microphone One Built-in Mic, Omni-Directional, 2KΩ, -36dB@1KHz Sensitivity, THD 115dB SPL@1KHz*
- Speaker One Built-in speaker, 4Ω, 2W Nom, 750Hz LFR, 100dB@0.1m
- Predefined Voice Supports Customized Pre-Defined Voice Tracks (Max 10 Tracks)
- Audio Compression 64 Kbps to 16Mbps
- Audio Compression G.711 A/U
- Audio Bit Rate 64 Kbps
- Protocols HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, SSL/TLS
- User / Host Up to Sixteen Users, Three Levels: Administrator, Advanced User and Normal User
- Security Measures User Authentication (ID and PW), Host Authentication (MAC Address), HTTPS Encryption, IEEE802.1x Port-Based Network Access Control, IP Address Filtering, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for Open Network Video Interface, RTP/RTSP Over HTTPS, Security Audit Log, TLS 1.2
- API ONVIF G/S/T, Support VITEK SDK and Third-Party Management Platform
- Client VITEK NVR1.4.11, Transcendent VMS 2.0, and Third-Party Client, Free iOS, and Android App
- Web Browser IE8-11 with Plug-in, Edge, Chrome, Firefox with Plug-in (Free)
- Basic Event Motion Detection, Video Tampering Alarm, Alarm Input, Alarm Output, Exception (Network Disconnection, IP Address Conflict, SD Card Full, SD Error)
- Smart Event Line Crossing, Region Entrance / Exit Detection, Object Removal Detection, Intrusion Detection
- Alarm Linkage Alarm, Memory Card Record, Trigger Record, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email
- Face A.I. 4.0 Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
- Perimeter Protection Line Crossing, Intrusion, Region Entrance, Region Exit, Support Alarm Triggering by Specified Type
- Alarm Interface 1 Alarm Input (Dry Contact), 1 Alarm Output
- Alarm Linkage Upload to FTP/Memory Card, Notify Surveillance Center, Send Email, Trigger Alarm Output / Recording / Capture
- Aux. Audio Interface 1Ch. LINE IN, 2.0-2.4Vpp, Impedance 1KΩ, 1Ch. LINE OUT, Impedance 600Ω*
- Network Interface 1 RJ45 10M/100M Adaptive Ethernet
- SD Card Slot MicroSD Slot and Chamber, up to 256G
- Reset Button Yes
- Water Removal Lotus Anti-Water Lens Cover Coating
- Languages English, Italian, Portuguese, Polish, Spanish
- Power Consumption Avg. 4watt. Max 12 Watt. (Speaker On + White Light On)
- Power Supply DC12V±15% 1500mA (Or) PoE+ (802.3.af, Class 3)
- Working Conditions -40°C~55°C (-40°F ~ 131°F), Cold start>=-30°C (1 hour waiting);90%RH
- Storage Condition -40°C ~ 70°C; ≤ 95% RH
- Housing Material Main Body: Aluminum Alloy (ADC12), Lens Cover: Polycarbonate
- Weight (Net/Gross), Dims Approximately 4.63lbs / 5.95lbs (2.1kg / 2.7kg) / Ø6.06” x 5.7” (Ø154mm x 145mm)
- EMC FCC SDoC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014)
- Certification CB (IEC 60950-1:2005 + Am1: 2009 + Am 2: 2013, IEC 62368-1: 2014), CE-LVD (EN 62368-1: 2014+A11: 2017), BIS (IS 13252 [Part 1]: 2010+A1: 2013+A2: 2015)CE-LVD (EN 62368-1: 2014+A11: 2017), BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015)
- Environmental CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014)
