Description

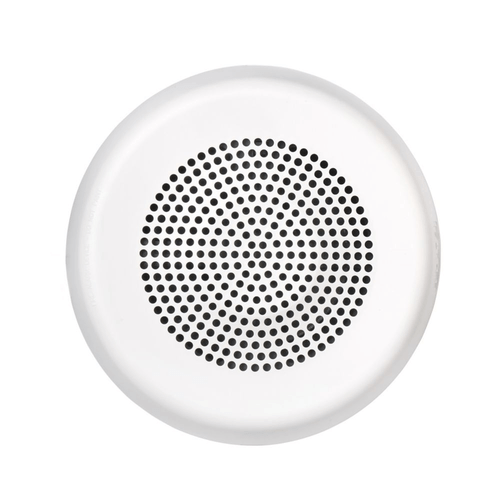

The Wheelock Eluxa speakers by Eaton feature high fidelity sound output, and speaker strobe models include an advanced power saving LED technology with a full range of candela settings for indoor wall and ceiling-mount applications. With the widest frequency response range (300 to 8000 Hz) in the industry, the Eluxa ELSPK and ELSPST clear and amber lens feature leading intelligibility with crisp, clear voice messages and tone signaling, ideal for emergency communications, mass notification, voice evacuation and fire alarm.
High efficiency, LED technology
Eaton's high energy efficient technology leads the industry in lowest
current draw in all candela settings, which reduces overall power
consumption and costs in fire alarm systems. As the first notification
appliances in the industry to utilize LED as the light source, this
breakthrough and patented optical design, resulting in best-in-class
efficiency, enables material and system cost savings, allowing for a
greater number of appliances on the notification appliance circuit
and fewer power supplies. All strobe models feature six candela
settings: 15, 30, 75, 110, 135, 185 cd on wall models and 15, 30, 75,
110, 150,177 cd on ceiling models, clear and amber lens.
Low profile design and rich feature set
With the industry's smallest footprint, the Eluxa speakers and
speaker strobes are aesthetically pleasing to building owners as the
low profile design does not detract from the interior decor. Eluxa is
feature rich with 6 candela settings in 1 device, dual voltage (25/70
VRMS) capability, field selectable taps 1/8th - 8w 70.7v / 1/8th - 2w
25v pre-wire/pre-test via mounting plate with hinged feature for
ease-of-installation, and no tools needed for setting changes. These
products are suitable for indoor wall and ceiling mount applications.
The ELSPST speaker strobes and ELSPK speakers are 24V operation.
Features
- High Fidelity Sound Output
- High intelligibility at minimum wattage across a frequency range of 300 to 8000 Hz
- Energy Efficient
- LED technology provides industry's lowest current draw
- Fewer power supplies required, smaller wire gage, reduced wire runs
- Low-Profile Design
- Smallest footprint with sleek, modern aesthetics
- Special Lettering Available
- 6 Field Selectable Settings in 1 Device, for both amber and clear
- Wall: 15, 30, 75, 110, 135, 185 cd
- Ceiling: 15, 30, 75, 110, 150, 177 cd
- 5 Field Selectable Taps
- 1/8th watt up to 8 watts 70.7v
- 1/8th watt up to 2 watts 25v
- Compliance
- NFPA 72 2016 - 20 ms flash duration requirements
- UL 1971, UL 1480, ULC-S526, ULC-S541
- California State Fire Marshal (CSFM)
- Low frequency requirements of UL 464 (520 Hz) to meet NFPA's 520 Hz tone requirements for sleeping areas
- ADA/NFPA/ANSI/OSHA
