Description

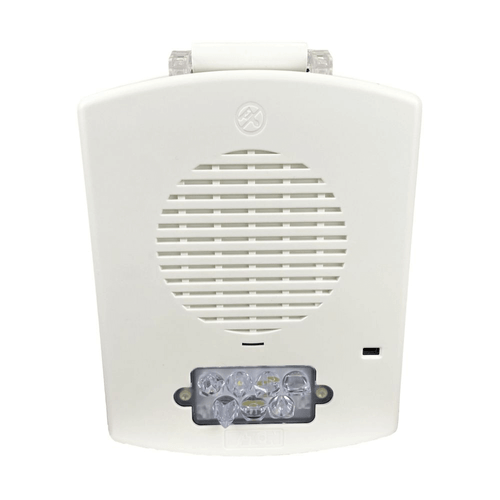

The Wheelock Eluxa weatherproof series EL3RMT/EL4XMT Multi-Tone Horn and EL4XMTST/EL3RMTST Multi-Tone Horn Strobe (and Amber) appliances are designed for easy installation with a pre-wire capable EL4XBB surface box or EL3RMP mounting plate. Eluxa EL3RMT/EL4XMT Multi-Tone Horn and EL4XMTST/EL3RMTST Multi-Tone Horn Strobe (and Amber) are UL Certified for fire protection service under Standard UL1971 for Signaling Devices for the Deaf and Hard of Hearing, UL1638 for Visual Signaling Devices and Standard UL464 for Audible Signaling Devices. The Eluxa 4X/3R Multi-Tone is also ULC Listed under Standard ULC 526 for Visual Signaling Devices and under Standard ULC-525 for Audible Signaling Devices for Fire Alarm Systems. All Eluxa 4X/3R models are listed for indoor/outdoor use, and for wall or ceiling mount.
Amber lens is certified for Emergency Warning and meets the light output requirements of UL1971.
Rugged
The cutting-edge solution delivers optimal performance thanks to its
NEMA type 3R and 4X ratings, which make it resistant to corrosion and
ice formation (4X only). The IP54 and IP66 ratings provide superior
protection against dust and water, making it ideal for areas of high
humidity, extreme heat, or severe cold.
Energy Efficient
With six candela settings in a single device, Eluxa features one of the
industry's lowest current draws across the full candela range. The Eluxa
outdoor product line reduces overall power consumption, allowing for
more appliances on each circuit (NAC) and fewer power supplies.
Compliance and Approvals
- Certified to NEMA type 3R | 4X
- IP54 |IP66 Certified |Tested to IP67
- NFPA 72 2016 (Meets maximum light pulse duration of 20 ms)
- IEC 60529 2nd edition + amendment 3- August 2013
- FCC Part 15B / ICES-003- Class A
- UL 50 13th edition- October 2020
- UL 50E 3rd edition- October 2020
- UL464 11th edition: CAN/ULC 525 5th edition- May 2023
- UL1480 7th edition: CAN/ULC 541 5th edition- May 2023
- UL1638 6th edition: CAN/ULC 526 5th edition- April 2023
- California State Fire Marshal (CSFM)
- Factory Mutual (FM)
- ADA/NFPA/ANSI/OSHA
