Description

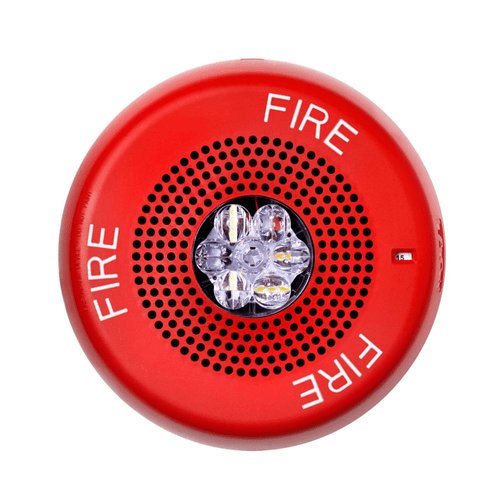

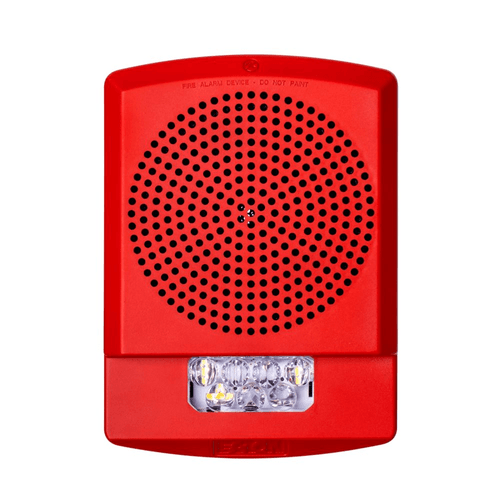

Providing eight (8) alerting sounds in a single device, the Wheelock Eluxa multitone horns and horn strobes will meet most of your signaling needs. The nationally and internationally recognized alerting sounds include Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren or Hi/Lo Tone. The Code-3 horn and tone patterns are engineered to comply with NFPA/ANSI Temporal Pattern specifications without requiring additional equipment. The multitone horn strobe models include an advanced power saving LED technology with a full range of candela settings for indoor wall and ceiling-mount applications.
High efficiency, LED technology
Eaton's high energy efficient technology leads the industry
in one of the lowest current draws across the full candela
range, which reduces overall power consumption and costs in
fire alarm systems. As the first notification appliances in the
industry to utilize LED as the light source, this breakthrough
design, resulting in best-in-class efficiency, enables material
and system cost savings, allowing for a greater number of
appliances on the notification appliance circuit and fewer
power supplies. All strobe models feature six candela
settings:15, 30, 75, 110, 135, 185 cd on wall models and 15,
30, 75, 110, 150, 177 cd on ceiling models. Blue, green, and
red lens strobes are also available. See separate data sheet for
colored lens specifications.
Low profile design and rich feature set
Eluxa is feature rich with 6 candela settings in 1 device,
two sound output levels: Standard dBA and High dBA, and
pre-wire/pre-test via mounting plate with hinged feature for
ease-of-installation. These products are suitable for indoor
wall and ceiling mount applications. The ELMT is for both 24V
and 12V system operation and the ELMTS is for 24V operation.
All models may be used with filtered or unfiltered (full-wave-rectified) input voltages. Separate input terminals and shunt
wires are provided to enable both audible and strobe to
operate simultaneously from a single input or from two inputs
using 4-wires.
Features
- 8 signals in 1 device to provide superior sound penetration for
various ambient conditions
- Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren or Hi/Lo Tone
- 2 field selectable sound output levels: Standard and High
- Code-3 horn and tone meet ANSI/NFPA temporal pattern for standard emergency evacuation signaling
- Audible and strobe can operate from a single NAC circuit or from separate NAC circuits with any of the (8) eight audible sounds
- Energy Efficient
- LED technology provides industry's lowest current draw
- Fewer power supplies required, smaller wire gage, reduced wire runs
- Low-Profile Design
- Small footprint with sleek, modern aesthetics
- 6 Field Selectable Settings in 1 Device
- Wall: 15, 30, 75, 110, 135, 185 cd
- Ceiling: 15, 30, 75, 110, 150,177 cd
- Compliance
- UL 1638, UL 464, ULC-S525, ULC-S526
- Factory Mutual (FM)
- California State Fire Marshal (CSFM)
- ADA/NFPA/ANSI/OSHA
