Description
- Part Number: FPP-AD-L3Q-06

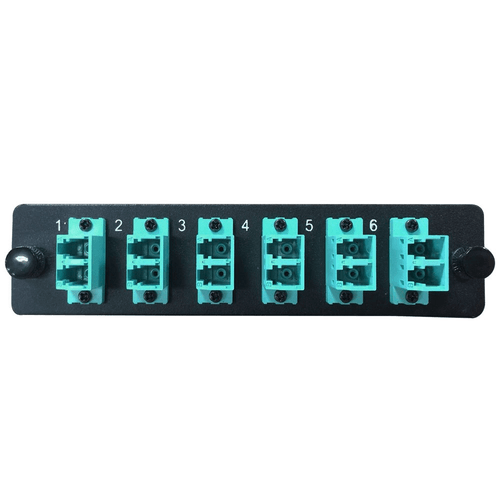

- LYNN LGX Fiber Adapter Panel with 6 LC Quad Adapters/Ports
- Fiber Mode: OM4/OM3
- Internal Shutters: Without Shutters
Designed for durability and low insertion loss
The LYNN LGX Fiber Adapter Panel is constructed from 16 gauge steel and includes a one-piece adapter design preventing breakage from stress during changes or adds. All adapter sleeves are constructed of the finest material producing very low insertion loss:
- Zirconium Ceramic singlemode sleeve insertion loss 0.03 - 0.01 dB
- Phosphorous Bronze multimode sleeve insertion loss 0.04 - 0.02 dB
All panels include a clear numbering scheme silk screened on both sides making installs simple. Each adapters is securely attached to panel with screws and spring lock technology.
Construction
- Panel Type: LGX
- Panel Material: 16 gauge steel with black electrostatic polyester powder coat paint
- Adapter Type: LC Quad
- Fiber Count: 24
- Adapter material: Zirconium Ceramic sleeves (singlemode), Phoshorous Bronze (multimode)
Performance
- Insertion Loss: 0.03 - 0.01 dB
- Durability: >500 Matings
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Approvals
- GR-326-CORE
- Flammability: UL94 V-0 Grade
- RoHS Compliant
