Description

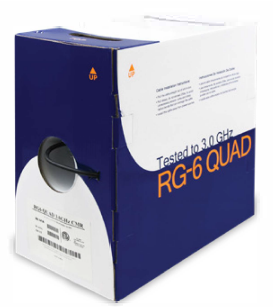

Wavenet RG6URWH4 RG-6/U 60% Riser (CMR) Coaxial Cable 1000 FT Pullbox, White
Application Standards
- RG-6U 60% CMR CATV 75 Ω Coaxial Cable
- Reference Standard SCTE IPS-SP-001 / UL 1655, UL 13, UL 444, RoHS
Physical Standards
| Conductor | Solid | Copper Clad Steel |
|---|---|---|
| AWG | 18 | |
| Diameter | (inches) | 0.040 |
| Insulation Material | Foam PE | |
| Nominal Thickness | (inches) | 0.073 |
| Insulation Diameter | (inches) | 0.186 |
| Braid Shield | Aluminum | |
| Coverage Area | (%) | 60 |
| Braid Diameter | (inches) | 0.213 |
| Jacket Material | PVC | |
| Nominal Thickness | (inches) | 0.2716 |
| Cable Diameter | (inches) | 0.0295 |
| Nominal Weight | 500 ft. | 16 lbs. |
| 1000 ft. | 30 lbs. |
