Description

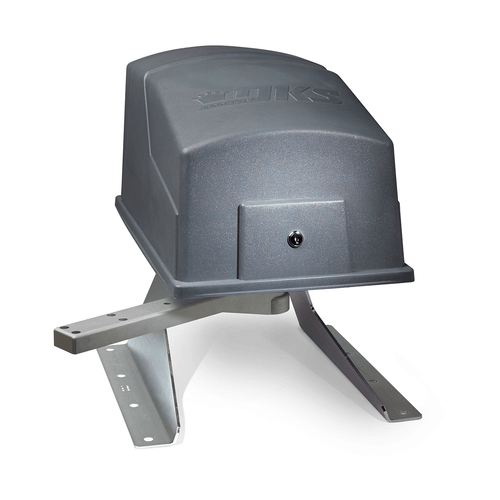

The 6500 series operators are designed to operate vehicular swing gates in residential, commercial and industrial applications for both single and bi-parting gates. The unique design of this operator allows for easy access to the electronics and mechanical areas of the operator without ever having to remove the gate arm. This simplifies installation and maintenance. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt driven gear box make this operator one of the quietest on the market today.
Features
- Split Case: Two-piece split polyurethane housing allows easy installation and maintenance
- One of the Quietest: The solid steel frame and belt-driven gearbox make this Operator one of the quietest on the market today
- Breakaway Hub: Unique breakaway hub design prevents gear box damage if the gate is struck
- Loop Detectors: Easy plug-in ports for DKS Loop Detectors
- Easy-to-Adjust Electronic Magnetic Limits: Eliminates old-style mechanical switches that can wear out, break, or fail
- Steel Frame: Provides strength and durability even in harsh weather environments
Specifications
- Maximum gate width 18-ft. (1/2 HP) or 22-ft. (1 HP)
- Maximum gate weight 700 pounds* (1/2 HP) or 800 pounds* (1 HP) (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
- 1/2 or 1 HP continuous-duty motor
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage)
- Class I, II, III and IV applications
- Primary reduction is provided by a pulley / belt driving a 60:1 worm gear reduction system running in a continuous oil bath
- The 6500 rotates the gate 90° in approximately 12-14 seconds
- Operator mechanics are mounted on a steel frame plated for corrosion resistance
- Two-piece articulating arm mechanical slow-start / slow-stop function
- Mounting: operator requires a concrete mounting pad
- Keyed access is provided to release arm for manual gate operation in the event of a power outage
Split polypropylene housing simplifies installation and maintenance - Unique breakaway hub helps to protect the gear box if the gate is rammed
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator)
Mechanical
- Adjustable, no maintenance magnetic limits
- Overlap feature for bi-parting swing gate operation
- Simple connection for secondary operator in bi-parting applications
- Selectable shadow/reverse loop function
- Magnetic lock power provided
- Gate tracker reporting output
- Programming switches
- Built-in reset switch
- Built-in power On/Off switch
- Adjustable electronic magnetic limits
- Auto-close timer (1-23 seconds)
- Gate overlap feature for bi-parting (dual) gate operation
- Built-in On / Off switch
- Built-in alarm reset switch
- Ports for plug-in open and reverse loop detectors (DKS plug-in detectors only)
- Three 115 VAC convenience outlets for accessory transformers
